Код: 4050
Код производителя: Frame QAV250
|

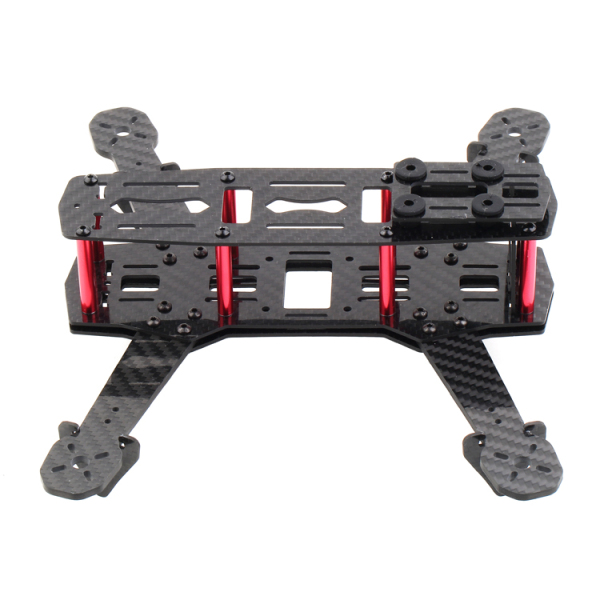

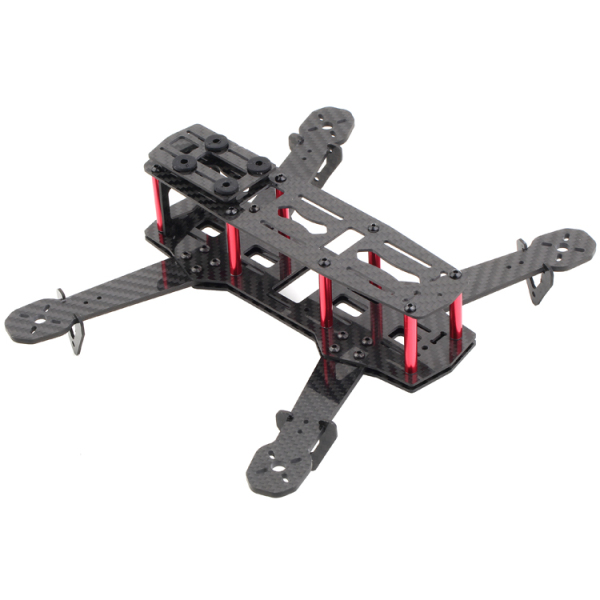

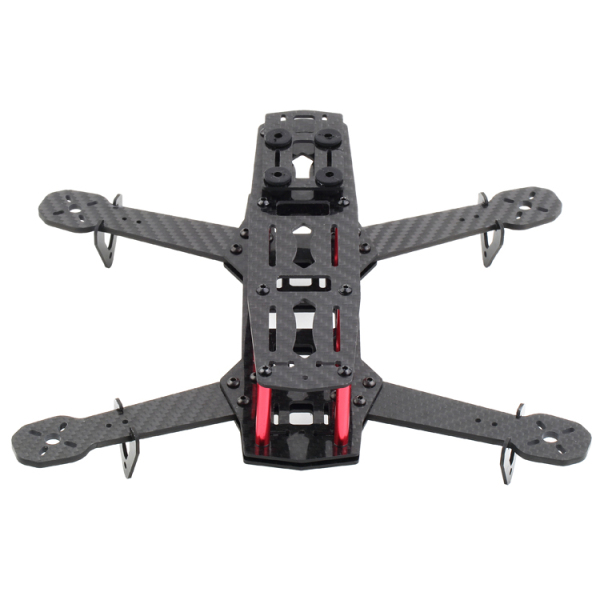

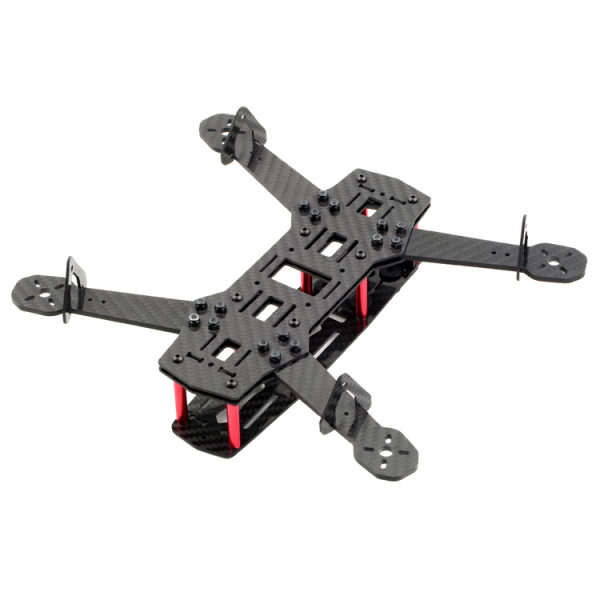

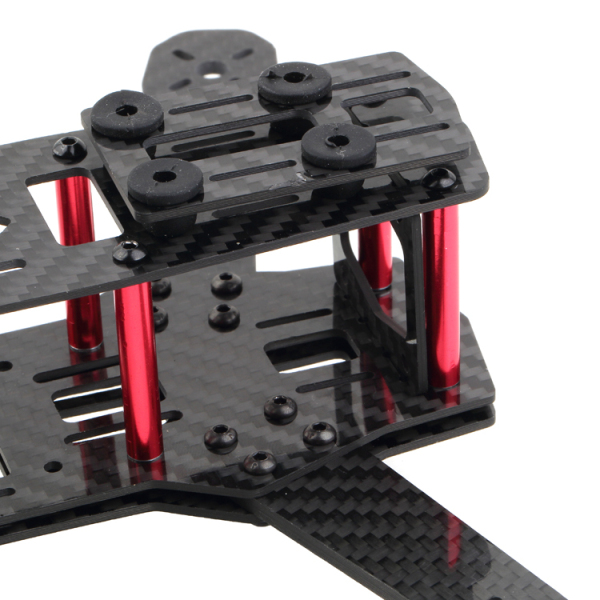

250mm Mini FPV Quadcopter Frame Kit
The Mini Quad is a low weight Mini Sport FPV Quadcopter frame.It was designed to make use of standard sized electronic equipment commonly used in RC. This allows the quadcopter to compete with larger quadcopters, while being smaller and agile.
Description:
Item Name: ZMR250

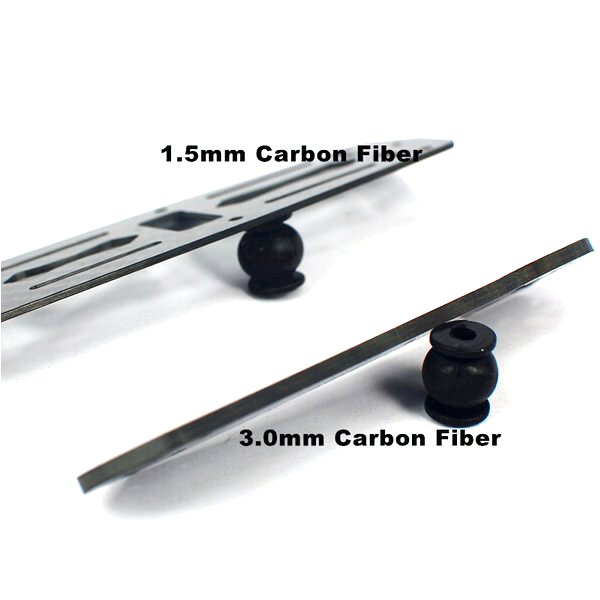

Materials: 3k Weave Carbon Fiber

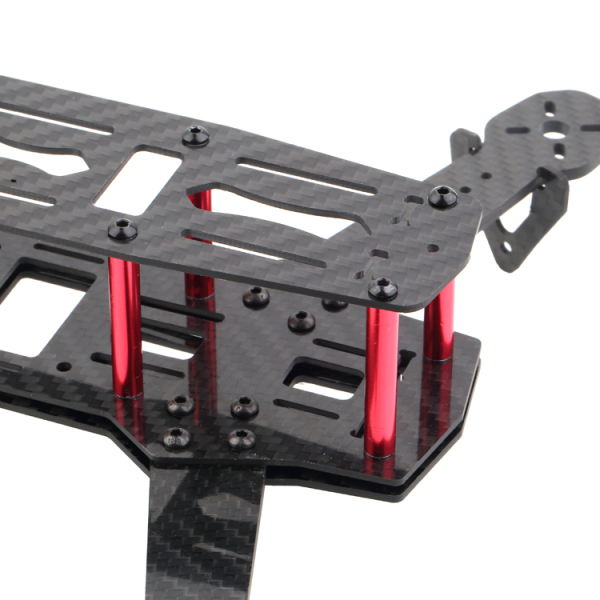

Fasteners: Stainless Steel & Red Metal 8/8
Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
Maximum Propeller: 6" (Suggest 5030 propeller)
Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm
Features:
Carbon Fiber Materials
Light weight Mini Sport FPV Quadcopter frame
Designed to make use of standard sized electronic equipment commonly used in RC

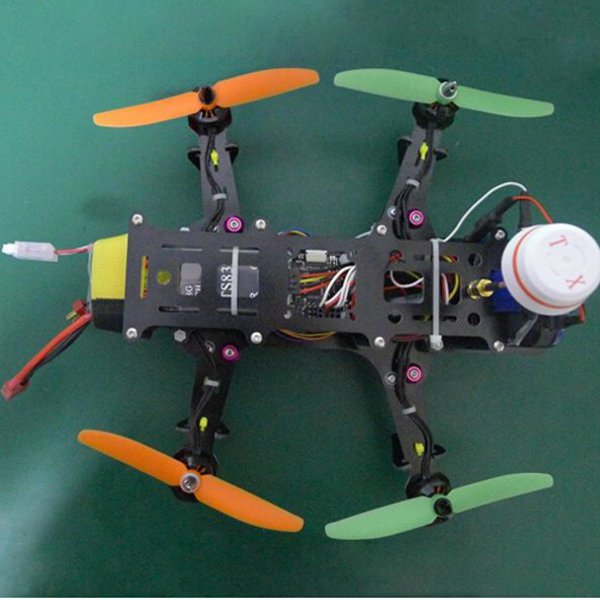

Recommended Configuration(Not included):
4 x Motors EMAX MT1806 KV2280 Click here
4 x 12A SimonK ESC Click here
4 x Propellers (size: 5x3 ) Click here
4 x Gemfan 5x3 3-Leaf Propellers Click here
1 x CC3D Flight controller Click here
1 x 700TVL 2.8mm camera Click here
1 x 11.1V 1500mAh battery Click here
Video Transmitter: ImmersionRC 600mw Video Transmitter
Antenna: ImmersionRC SpiroNet V2 (SMA)
QAV250 motor ESC propeller Set Click here
Note: This product only included frame kit,not included other accessories.

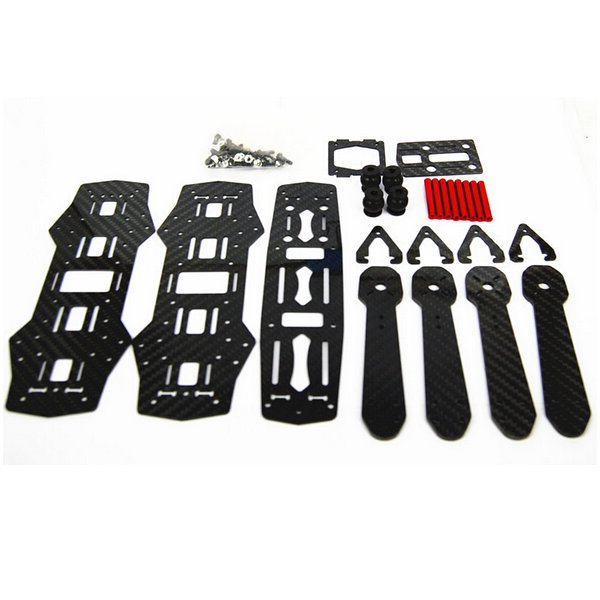

Package included:
1 x ZMR 250 Frame Kit
